7 Inch 1024x600 Industrial TFT Display Active Matrix TFT Color LCD Display

Name: 7 Inch 1024x600 Industrial TFT Display Active Matrix TFT Color LCD Display
Brand: AISON
Price: 1 USD

China 7 Inch 1024x600 Industrial TFT Display Active Matrix TFT Color LCD Display wholesale

Brand Name : AISON

Model Number : Z070WS03

Certification : ISO9001 / ISO14000/ROHS

Place of Origin : Guangdong,China

MOQ : 1

Price : Negotiable based on quantity

Payment Terms : T/T, Western Union, MoneyGram,Paypal

Supply Ability : 200k/month

Delivery Time : 7 working days

Packaging Details : Carton/Blister Package

Name : 7 inch Industrial TFT Display

Resolution : 1024X600

Outline dimension : 164.9*100*3.5mm

Active area : 154.21 x 85.92mm

Interface : RGB

Brightness : 400 cd/m2

LCD Type : TFT, Normally White, Transmissive

Contrast Ratio : 800:1

Operating temperatures : -20℃ To +70℃

Storage temperatures : -30℃ To +80℃

Contact Now

1024x600 Industrial TFT Display 7 Inch Active Matrix TFT Color LCD Display

General Description

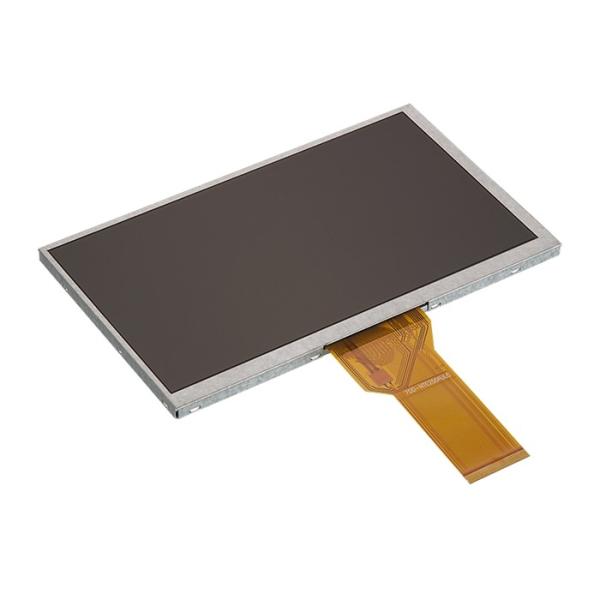

Z070WS03 is a 7-inch TN transmissive type color active matrix TFT LCD with a resolution of 1024x600 pixels with RGB 50 pin interfacce.
The display features an aspect ratio of 16:9. The power voltage (DVDD) ranges from 3.0V to 3.6V, with a typical value of 3.3V. It includes an anti-glare surface panel, with an viewing direction 75/70/75/75. The brightness ranges from 400 nits to 450 nits.

This 7 inch TFT Displays Operating temperatures range from -20°C to +70°C, with storage temperatures from -30°C to +80°C. This TFT display model is suitable for various industrial control product applications.

General Data

Model Name	7 inch RGB TFT Display
Resolution	1024x600 mm
Model Size (WHT)	164.91003.5 mm
Display Area (W*H)	154.21 x 85.92
Interface	RGB
Display Mode	Normally White,Transmissive
Viewing	12 o'clock
Brightness	400 cd/m2
Pin number	50 pin
Contrast Ratio	800:1
Operating temperatures	-20 to 70 degree
Storage temperatures	-30 to 80 degree

Drawing
7 Inch 1024x600 Industrial TFT Display Active Matrix TFT Color LCD Display

Product Details

TFT Applications:

This 7 inch TFT LCD module is well-suited for applications in industrial control equipment, testing devices, medical equipment, and smart home devices, among others. Due to its versatility, this TFT LCD module is suitable for a variety of application scenarios.

7 Inch 1024x600 Industrial TFT Display Active Matrix TFT Color LCD Display
